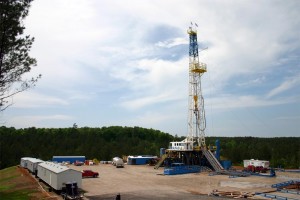

RIG 35

Mechanical Land Rig

Capable of Drilling to 15,000 feet

Drawworks: Continental Emsco D-3 Type III drawworks rated at 1000 H.P. grooved for 1 1/4″ line with Baylor 6032 electric brake

Primary Power: Three CAT 3456 engines rated at 550 H.P. each on compound, two 450 KW generator sets powered by 3456 CAT Engines

Mast: Modified Parco 136 ft rated to 550,000 lbs hook load

Substructure: Parco OIME SL-5 modified box structure, 21 ft. floor height, 467,500 lbs rotary capacity simultaneous with 357,500 lbs, setback capacity

Block/Hook: 350 ton National block/hook combination

Mud Pumps: Two National 9-P-100 triplex pumps, 1000 H.P. independent driven with CAT 3508 engines, charged by two 5×6 Mission Magnum pumps powered 40 H.P. electric motors

Mud Tanks: Two mud tank system with 900 BBL capacity with 60 BBL slugging tank, three Brandt mud agitators powered by 10 H.P. electric motors, two Mission Magnum 6×8 mixing pumps powered by 75 H.P. electric motors

Solids Control: Two Brandt Cobra linear motion shale shakers, Brandt 16 cone desilter, Brandt 2 cone desander

Water Storage: 500 BBL capacity

Fuel Storage: 10,000 gallon capacity

Rotary: Continental Emsco 27 1/2 ” rotary table with dead load rating 500 tons

Swivel: Continental Emsco LB-300, 300 ton

Blowout Preventers: One Cameron 11″ type U 10,000 PSI H2S certified double Ram preventer, one Hydril 11″ GK-5000 H2S certified annular preventer, Cameron 10,000 PSI H2s certified choke manifold, mud gas separator (shop built)

Accumulator: Valvcon five-station closing unit

Drill Pipe: 4 1/2″ G-105 16.60#

Hevi-Wate: 12-4 1/2″ HWT with 4 1/2″ XH connection

Drill Collars: 6 1/2″ DCs with 4 1/2″ XH connection, 3 - 8″ DCs with NC-56 connection

Miscellaneous Equipment:  Three Air Hoists, Kelly Spinner, Upper Kelly Valve, Lower Kelly Valve, Two Air Compressors, Drilling Recorder, Seven Degree Drift Indicator, Vapor-Proof Fluorescent Lighting System, Inside BOP, Spinning Wrench, Pilot Automatic Driller, Wireline Unit 0.092
